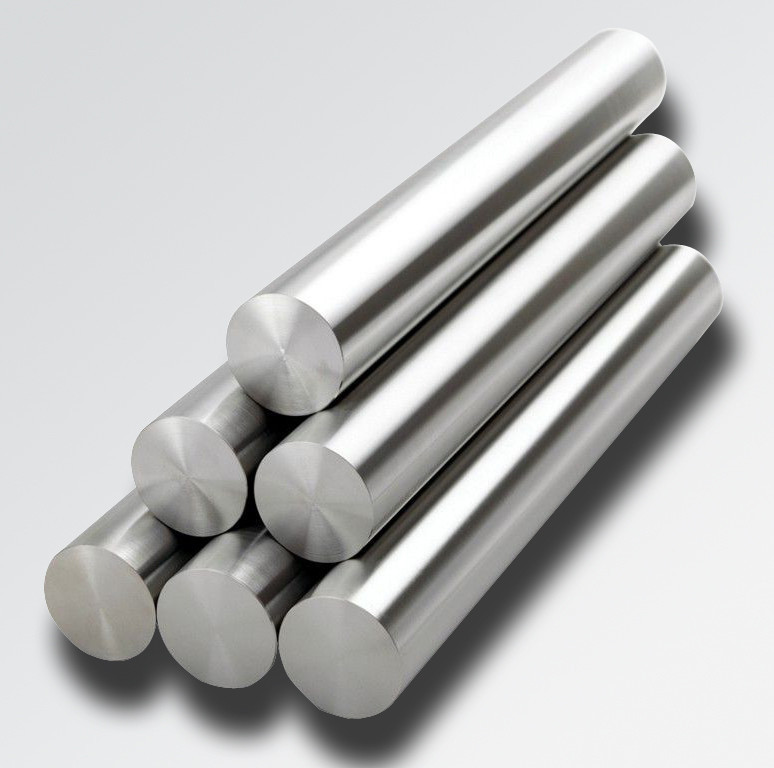

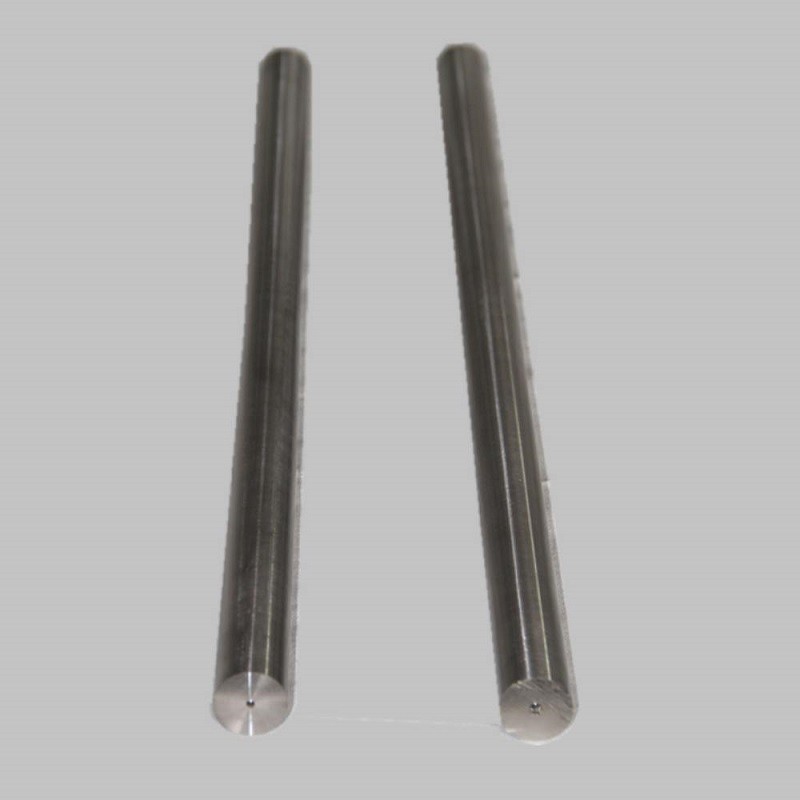

Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers

    Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers
    • Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers
    • Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers
    • Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers
    • Buy cheap Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length from wholesalers

    Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : 2.4066 2.4068 Alloy 200 Alloy 201
    Certification : ISO
    Price : 24-35USD/Kg
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

    Grade 2.4066 / Alloy 200 / UNS N02200 Pure Nickel Alloy Bars Custom Free Cutting Any Length

    Specification of Nickel Bar

    NameNickel Round Bar
    GradeAlloy 200 / Alloy 201 / 2.4068 / 2.4066
    Density8.9g/cm3
    Diameter4 - 200mm or other special diameter as request
    Length1m 2m 3m 4m 6m or cutting any length free
    SurfaceBright
    Lead time7 to 10 working days after the receipt of deposit
    Other ShapePlate, Pipe, Flat Bar, Coil
    MOQ50 kgs
    Payment terms30%TT for deposit, 70% balance before shipment
    Price TermFOB,CIF,EXW
    Port of LoadingShanghai Port
    Deliver methodBy Sea, UPS, DHL, Fedex
    Packingstandard packing with plastic bags and strapped bundles, and can be customized; In bundles tied with steel strips. End plastic
    caps, external packing by PVC or according to customer's request

    MATERIAL DESCRIPTION

    Material 2.4066 is an unalloyed, technically pure nickel. The material has a high corrosion resistance and excellent resistance to alkaline media. In addition, 2.4066 (Alloy 200) has good mechanical properties over a wide temperature range.

    This material also offers good resistance in oxidising and reducing conditions as well as high ductility. Good thermal conductivity and excellent resistance to a range of corrosive media, acids and natural salt solutions finish off the positive material properties of 2.4066.


    200 Nickel Round Bar Chemical Composition


    GradeCMnSiCuSFeMoNiCr
    Nickel 2000.15 max0.35 max0.35 max0.25 max0.01 min0.40 max99 min

    Nickel Alloy 200 Rods Mechanical Properties


    DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
    8.9 g/cm31446 °C (2635 °F)Psi – 67,000 , MPa – 462Psi – 21,500 , MPa – 14845 %

    AN OVERVIEW OF THE PROPERTIES OF 2.4066:

    • High corrosion resistance
    • Good mechanical properties (over a wide temperature range)
    • Resistance to alkaline media, corrosive media, acids and natural salt solutions, among others
    • Resistance to oxidising and reducing conditions
    • High ductility
    • Good thermal conductivity

    APPLICATIONS

    • Chemical and petrochemical industry
    • Food industry
    • Transport systems for chemical agents

    Other Nickel Alloy Grade


    DIN
    WERKSTOFF NR.
    UNS
    Grade
    Ni 99.2
    LC-Ni 99
    2.4066
    2.4068
    N 02200
    N 02201
    NICKEL 200/201
    NiCu 30 Fe2.4360N 04400MONEL 400
    NiCr 20 CuMo2.4660N 08020ALLOY 20
    NiCr 21 Mo2.4858N 08825INCOLOY 825
    NiCr 29 Fe2.4642N 06690INCONEL 690
    NiCr 25 FeAIY2.4633N 06025ALLOY 602 CA
    NiCr 15 Fe2.4816N 06600INCONEL 600
    NiCr 23 Fe2.4851N 06601INCONEL 601
    NiCr 21 Mo 14W2.4602N 06022HASTELLOY C22
    NiCr 23Mo 16Al2.4605N 06059ALLOY 59
    NiMo 16 Cr 15W2.4819N 10276HASTELLOY C 276
