    ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm

    Ask Lasest Price
    Brand Name : DELTA
    Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc
    Certification : ISO
    Price : 4000-5000 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm

    ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm

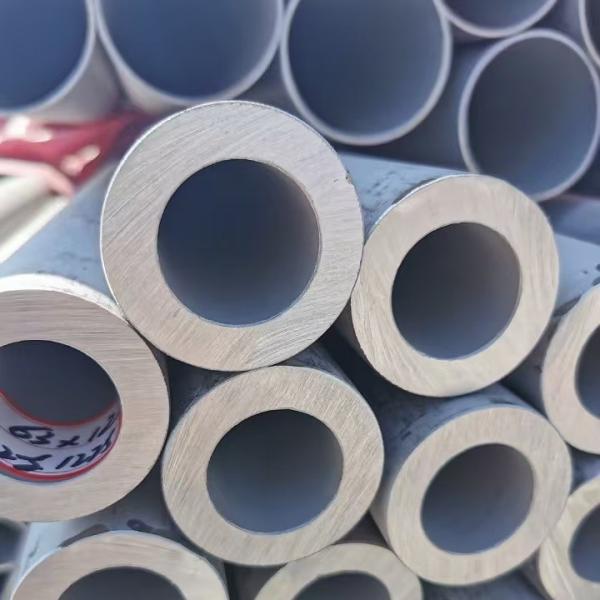

    Stainless steel pipe is a hollow strip of circular steel, mainly widely used in petroleum, chemical, medical, food, light industry, mechanical instrument and other industrial pipeline and mechanical structure parts. In addition, in the same bending, torsional strength, light weight, so it is also widely used in manufacturing machinery parts and engineering structures. It is also commonly used as furniture and kitchenware.


    ASTM A312 TP 316L Stainless Steel Seamless Pipe Grade And Specification
    Stainless Steel Pipes
    Sr. No.
    Material
    Size
    Sch.
    Specification
    Manufacturer
    1
    ASTM A312 Stainless Steel 316L Seamless Pipe
    15 NB
    To
    300 NB
    Sch. 5s
    Sch. 10s
    Sch. 40s
    Sch. 80s
    Sch. 160s
    Sch. XXS
    ASTM A-312
    Imported
    Choksi
    Remi &
    Ratnamani
    2
    ASTM A312 Stainless Steel 316L Welded (ERW) Pipe
    15 NB
    To
    300 NB
    Sch. 5s
    Sch. 10
    Sch. 40s &
    Sch. 80s
    ASTM A-312
    Remi
    Ratnamani
    Vishal
    Suraj
    C.D. Prakash
    Heavy
    Imported Etc.
    3
    ASTM A358 Stainless Steel 316L Welded (ERW) Pipe
    150 NB
    To
    600 NB
    Sch. 5s
    Sch. 10s
    Sch. 40s &
    Sch. 80s
    ASTM A-358
    Fabricated at Famous
    Prakash
    Vishal (with Radiography)

    Note:-
    SpecificationASTM A 269/A 213 / EN 10216-5 / NACE MR0175/PED 97/23 EC
    Outside Diameter:6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
    Thickness Range0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
    TypeSeamless / ERW / Welded / Fabricated / CDW
    EndPlain End, Beveled End, Threaded
    End ProtectionPlastic Caps
    Outside Finish2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
    Delivery ConditionAnnealed and Pickled, Polished, Bright Annealed, Cold Drawn
    Special Pipes
    		Stainless Steel 304 Fabricated Pipe (with radiography)
    In Form of
    Round Pipe /Tubes
    Square Pipe /Tubes
    Rectangle Pipe /Tubes
    Coiled Tubes
    Oval Pipe /Tubes
    Coil
    Flexible Pipe
    Pan Cake Coils,
    Shaft
    ‘U’ Shape
    Hydraulic Pipe/ Tubes etc.
    In Length of
    		Single Random, Double Random , Standard & Cut length
    Value Added Service
    		Draw & Expansion as per required Size & Length
    Polish (Electro & Commercial) Heat Treatment
    Bending
    Annealed & Pickled
    Sand Blasting
    Machining Etc.

    Chemical Composition Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
    GRADE
    C
    MN
    SI
    P
    S
    CR
    MO
    NI
    N
    316L
    Min
    -
    -
    -
    -
    -
    16.0
    2.00
    10.0
    -
    Max
    0.03
    2.0
    0.75
    0.045
    0.03
    18.0
    3.00
    14.0
    0.10
    316H
    Min
    0.04
    0.04
    0
    -
    -
    16.0
    2.00
    10.0
    -
    max
    0.10
    0.10
    0.75
    0.045
    0.03
    18.0
    3.00
    14.0
    -

    Mechanical Properties Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
    GRADETENSILE STR
    (MPA) MIN    		YIELD STR
    0.2% PROOF
    (MPA) MIN    		ELONG
    (% IN 50MM) MIN    		HARDNESS
    ROCKWELL B (HR B) MAXBRINELL (HB) MAX
    316L
    485
    170
    40
    95
    217
    316H
    515
    205
    40
    95
    217

    Physical Properties Of ASTM A312 TP 316L Stainless Steel Seamless Pipe
    GRADEDENSITY
    (KG/M3)    		ELASTIC MODULUS
    (GPA)    		MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C)THERMAL CONDUCTIVITY
    (W/M.K)    		SPECIFIC HEAT 0-100°C
    (J/KG.K)    		ELEC RESISTIVITY
    (NΩ.M)
    0-100°C0-315°C0-538°CAT 100°CAT 500°C
    316L/H800019315.916.217.516.321.550074

    Grade Specifications For 316L Stainless Steel Pipe
    GRADE
    UNS
    NO
    OLD BRITISH
    EURONORM
    SWEDISH
    SS
    JAPANESE
    JIS
    BS
    EN
    NO
    NAME
    316L
    S31603
    316S11
    -
    1.4404
    X2CrNiMo17-12-2
    2348
    SUS 316L
    316H
    S31609
    316S51
    -
    -
    -
    -
    -

    ASTM A312 TP 316L Stainless Steel Seamless Pipe Available Size
    NB SIZES
    		SCH 5SCH 10SCH 40SCH 80SCH 160
    1/8″
    √
    √
    √
    √
    √
    1/4″
    √
    √
    √
    √
    √
    3/8″
    √
    √
    √
    √
    √
    1/2″
    √
    √
    √
    √
    √
    3/4″
    √
    √
    √
    √
    √
    1″
    √
    √
    √
    √
    √
    1 1/4″
    √
    √
    √
    √
    √
    1 1/2″
    √
    √
    √
    √
    √
    2″
    √
    √
    √
    √
    √
    2 1/2″
    √
    √
    √
    √
    √
    3″
    √
    √
    √
    √
    √
    4″
    √
    √
    √
    √
    √
    5″
    √
    √
    √
    √
    √
    6″
    √
    √
    √
    √
    √

    ASTM A312 TP 316L Stainless Steel Seamless Pipe Value Added Service

    Polishing

    		Victor Steel can polish nearly any stainless steel pipe item to a #4 polish, #6 Polish, #7 polish or a #8 mirror finish. Stainless steel polished pipes can also be cut to size.

    Beveling

    		Victor Steel can bevel stainless steel pipe to prepare for welding or other processes.

    Honing/Turning

    		Victor Steel can hone pipe and tube, using a precision abrasion process in order to obtain a desired finish or close dimensional tolerance.

    Heatreating & Annealing

    		Some grades of stainless steel pipe and tube can be heatreated to change the mechanical properties. Precipitation Hardening Stainless Steels such as 17-4PH can be heatreated. 410 stainless steel plate can also be heatreated. In some cases, secondary annealing 300 series stainless steel may be required depending on the application

    Positive Material Identification (PMI)

    		Victor Steel can perform PMI testing in house for most stainless steel grades, or we can work with independent labs to complete PMI in order to meet customer specifications.

    UT Testing

    		In some cases, UT testing of the stainless steel pipe and tueb may be required. We can assist you with this requirement.

    ASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mmASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mmASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mmASTM JIS 316 316L SUS316L 1.4404 Stainless Steel Pipe / SS Pipe Tube OD6 - 426mm
