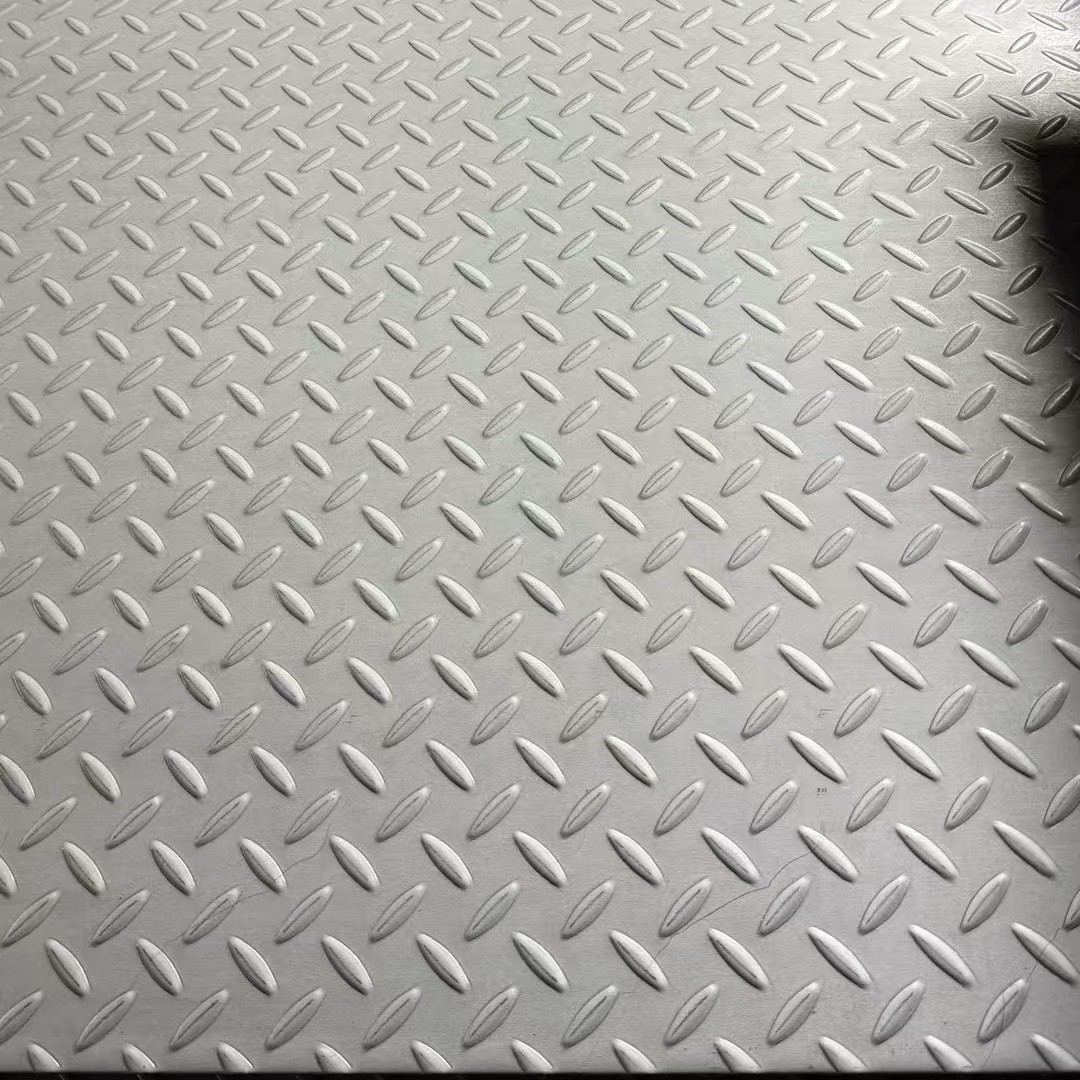

| Item | Stainless steel checkered plate |
| Standard | ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
| Material | Mainly 201,202,304 L, 304H, 316,316L, 316TI, 2205,330,630,660,409L,
321,310,430,410,416,410S, 430,347H, 2CR13, 3CR13 and so on
: 301,302,303,304,304L, 309,309s, 310,310s, 316,316L, 316Ti, 317L,
321,347
200 pieces: 201,202,202cu, 204
400 series, 409409 l,
410420430431439440430431439440430431439440430431-4 ph
, 17-7pH, S318039 904L, etc
Duplex stainless steel, such as: S22053, S25073 S22253, S31803,
S32205, S32304
317/317 347/347 special stainless steel, 904 l, h, l, 316 ti, mo
254 |
| Size | Thickness:
Cold rolled: 0.15 to 10 mm
Hot: 3.0-180 - mm
Width: 8-3000 - mm
Length: 1000-6000 - mm
Size can be customized according to customer needs. |
| Surface | Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,
or as required. |
| Application | Widely used in high temperature applications, medical equipment,
building materials, chemistry, food industry, agriculture, shipping
Parts.
It is also suitable for food, beverage packaging, kitchen supplies,
trains, planes, conveyor belts, vehicles, bolts, nuts, springs
And the screen. |
| Export to | America, Australia, Brazil, Canada, Peru, Iran, Italy, India,
United Kingdom, Arab, etc. |
| Package | Plywood pallets, wooden cases
All our products are packed, stored and shipped in accordance with
international regulations.
The pipes are wrapped in rustproof paper and steel ring to prevent
damage. Identification labels are marked according to standard
specifications or customer instructions.
Special packaging is available upon request.
Laminated wooden cases can be used for special protection. |
| Price term | EXW,FOB,CIF,CFR,CNF,etc. |
SS checker plates are commonly made of SUS 304, 304L, 316 and 316L
material types, also low colbalt stainless steel and 430 materials.
304 Grade Stainless Steel Checker Plate
5mm stainless steel chequer plate sheet
Cut plates: 40" x 40"
5 bar AISI304 stainless steel checkered plate
Sheet size 1,250 x 2,500 x 3 mm.
Checkered Plate SS304
10mm x 1220MM W x 2440mm L
Stainless Steel Checker Plate SUS304
4.5mm*1219*2438
Stainless steel checker plate 304L.
Cut plate size: 1/5*3*.004
SS 304 Chequered Plate
Size: 2500MM x 1250MM x 6MM
Deviation to the extent of +1.14 mm &-0.25 mm in thickness
AISI 304 hot-rolled checkered plates
3x1250x2500
4x1250x2500
Checkered ss plates with different embossed images
6/5mm tear drop pattern plate in AISI 304
Sheet size:
5mm x 1219mm x 5800mm
5mm x 1500mm x 3000mm
AISI 304 Checker Plate
Plate AISI 304 Checker (flat bottom)
3 x 1000 x 3000MM
2 bars Stainless Steel Diamond Plate
Stainless steel checker plate 3mm thick for architectural wall
lining
Sheet size:1600 mm High
Material 304
Stainless steel chequered cut plate
Sheet size 4 to 4.5mm x 36" x 80"
Material Garde-304.
For wall protection
AISI 316L Grade Stainless Steel Checker Plate Sheet
Press type
Sheet size: 3.5mm x 1219mm x 2438mm
Prime stainless steel checker plate sheet AISI 316L
3.0mm x 1219mm x 2438mm
316 Stainless Steel Chequer Plate
Material 316 or 316L
Thickness: 8 mm
Sheet size: 6 m x 2 m
Stainless Steel Checker Plate
Stainless Steel Plate SS 304L EN 10088 1.4307
Equivalent to ASTM A240 304L
With chemical impurities limitation as Cobalt (Co) – max 0.050 wt.
%, Niobium (Nb) – max 0.10 wt. %, Tantalum (Ta) – max 0.01 wt. % of
different thickness of plate.
Sheet thickness: 2 mm, 5 mm, 20 mm
The standard sheet / plate: 4 feet by 8 feet while a variety of
sheet sizes available to meet various applications.
304 Stainless Steel Sheet Plates
Thickness 0.5 mm, 0.7 mm, 0.8 mm, 1mm, 1.2 mm, 1.5mm, 2mm
Surface: 2B (Cold rolled flat Steel) and Grindling and pvc.
Sheet plates dimensions:
1000x2000 mm, 1250x2500 mm, 1500x3000 mm
