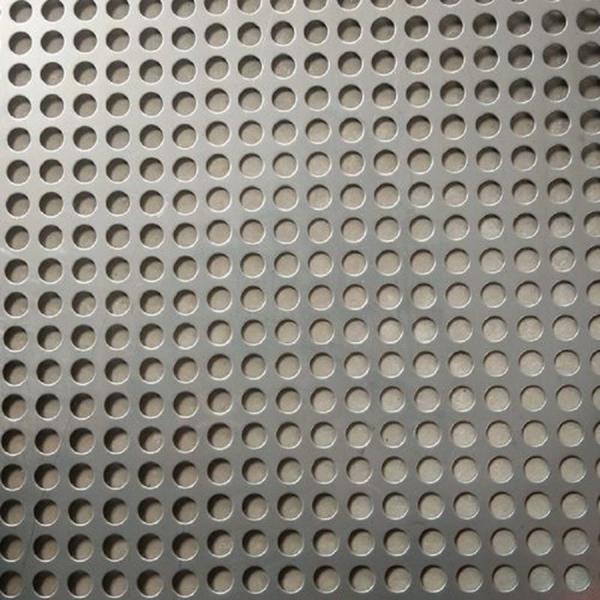

    0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm Thickness Stainless Steel Perforated Sheet

    Ask Lasest Price
    Brand Name : TISCO
    Model Number : 201 304 304L 310S 316L 317L 321.etc
    Certification : ISO
    Price : 2100 - 3200 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm Thickness Stainless Steel Perforated Sheet

    0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm Thickness Stainless Steel Perforated Sheet


    Products Specification of our Perforated Metal Sheet


    NamePerforated Metal Sheet
    MaterialSS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel
    Hole Diameter0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting)
    SizeNormal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.)
    Thickness0.1-10mm
    CoatingPVC Coating; Powder spraying; Galvanized Coating;
    ApplicationsIndustrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries.
    Hole shapeRound perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation
    Angle degree45°;60°;90°

    Pattern of Perforated Sheet



    Description

    Length x Width2000 x 1000 mm
    2500 x 1250 mm
    HolesRound 0.5 – 15.00 mm
    PitchTriangular 1.00 – 21.00 mm
    Thickness0.4 – 2.0 mm
    Percentage Open19 – 63 %
    Grade304 & 316
    FinishMill

    Diameter Informations


    HOLE ROUND MMPITCH TRIANGULAR MMTHICKNESS MMAPPROX % OPENGRADESHEET SIZES
    0.51.10.4193042000 x 1000mm
    0.81.50.5263042000 x 1000mm
    120.5233042000 x 1000mm
    121233042000 x 1000mm
    1.120.8233162000 x 1000mm
    1.52.61303042000 x 1000mm
    23140304/3162000 x 1000mm
    23.5130304/3162000 x 1000mm
    23.51.530304/3162000 x 1000mm
    341513042000 x 1000mm
    35133304/3162000 x 1000mm2500 x 1250mm
    351.533304/3162000 x 1000mm2500 x 1250mm
    35233304/3162000 x 1000mm2500 x 1250mm
    451583042000 x 1000mm
    561633042000 x 1000mm
    57146304/3162000 x 1000mm
    581.535304/3162000 x 1000mm2500 x 1250mm
    691.5403042000 x 1000mm
    8111473042000 x 1000mm
    8111.5473042000 x 1000mm
    8121.5403042000 x 1000mm
    1012.71533042000 x 1000mm2500 x 1250mm
    10151.540304/3162000 x 1000mm2500 x 1250mm
    10152403042000 x 1000mm2500 x 1250mm
    12161.5513042000 x 1000mm
    15211.5463042000 x 1000mm
