    Slotted Hole Perforated Metal Sheet Stainless Steel Galvanized Steel Mild Steel Long Hole Sheet

    Ask Lasest Price
    Brand Name : TISCO
    Model Number : 201 304 304L 310S 316L 317L 321.etc
    Certification : ISO
    Price : 2100 - 3200 USD/Ton
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10 Ton per week
    Delivery Time : 5 - 12 days based on the quantity
    • Product Details
    • Company Profile

    Slotted Hole Perforated Metal Sheet Stainless Steel Galvanized Steel Mild Steel Long Hole Sheet

    Slotted Hole Perforated Metal Sheet Stainless STeel , Galvanized Steel , Mild Steel Long Hole Sheet


    Products Specification of our Perforated Metal Sheet


    NamePerforated Metal Sheet
    MaterialSS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel
    Hole Diameter0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting)
    SizeNormal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.)
    Thickness0.1-10mm
    CoatingPVC Coating; Powder spraying; Galvanized Coating;
    ApplicationsIndustrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries.
    Hole shapeRound perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation
    Angle degree45°;60°;90°

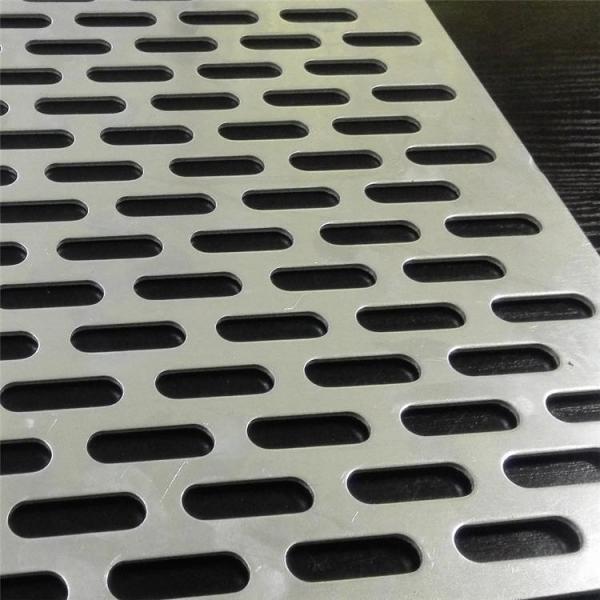

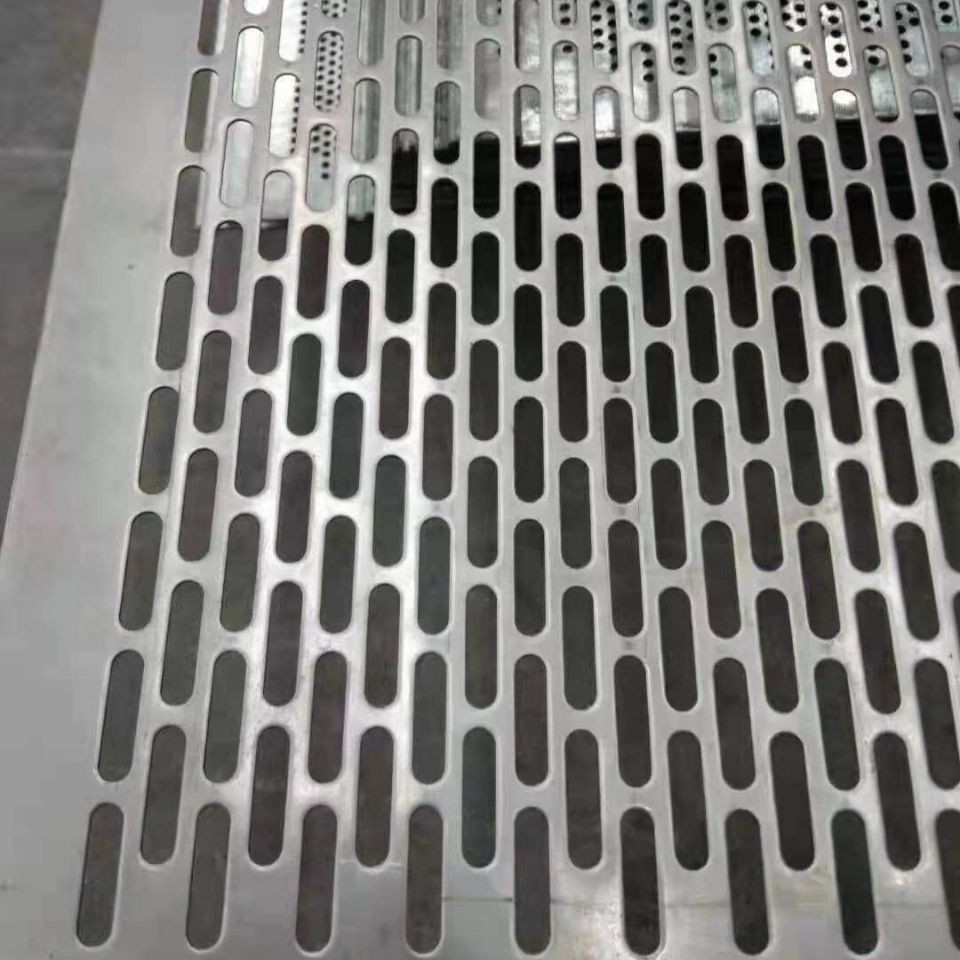

    Slotted hole perforated metal sheet pattern is an extended hole with round or square ends.


    This hole shape is designed with the concept of allowing the necessary amount of material to pass through the metal sheet while maintaining the desired strength and performance characteristics.


    Popular sheet thickness ranges from 26 gauge through 1/4″ plate(thicker plates are available on special order). Common hole size ranges from 0.02 to 1″ and greater.

    Features & Benefits

    • Decorative Appearance
      Any perforation pattern can be used for decorative purposes, and slotted holes are no exception. Oval or rectangular slotted holes, both designs provide a distinct, unique look for the final application.
    • Functional Design
      Slotted perforated metal has a special design that allows a large amount of material to pass through without adversely affecting the overall strength and performance of the metal sheet.
    • Available Materials
      The most common materials used for slotted perforated panels include mild steel, carbon steel, stainless steel, aluminum, copper, brass, and any other materials suitable for perforation.

    Application of Slotted Hole Perforated Sheet

    • Perforated sheets are used extensively for both industrial and architectural applications:
    • Industry for sieving
    • Industry for protection & ventilation
    • Architecture for function and appearance both internally and externally including:
    • Energy saving benefits, sound control and lighting effects

    Slotted Hole Perforated Metal Sheet Specification

    DescriptionHole diaHole pitchOpen areaThickness
    (mm)(mm)(%)1.0mm1.5mm2.0mm2.5mm3.0mm
    LR1 X 10Z1 x 107 x 1420%**
    LR1.5 X 12Z1.5 x 1210.3 x 1621%**
    LR1.5 X 20Z1.5 x 204 x 5030%**
    LR2 X 10Z2 x 1010 x 1526%**
    LR2 X 20Z2 x 2010 x 2531%**
    LR3 X 20Z3 x 206 x 2674%******
    LR3 X 20Z3 x 2014 x 2632%******
    LR4 X 20Z4 x 2010 x 2561%********
    LR4 X 25Z4 x 256.5 x 4566%********
    LR4.5 X 25Z4.5 x 257 x 6051%********
    LR4.75 X 20Z4.75 x 2015 x 2548%********
    LR5 X 20Z5 x 2020 x 2538%********
    LR6 X 20Z6 x 2024 x 24.838%**********
    LR 6 X 20Z6 x 2026 x 4022%**********
    LR7 X 20Z7 x 2013 x 47.542%**********
    LR7 X 25Z7 x 2530 x 3037%**********
    LR8 X 40Z8 x 4026 x 47.550%**********
    LR10 X 40Z10 x 4020 x 5076%**********
    LR2.1 X 20U2.1 X205 X 2533%****
    LR2.4 X 20U2.4 X 205 X 2538%****
    LR3 X 20U3 X 205.5 X 2541%******
    LR4.5 X 20U4.5 X 208 X 2544%**********
    LR5 X 30U5 X 309 X 3546%**********
    LR7 X 25U7 X 2512 X 3045%**********

    Packing & Shipping

    • Waterproof paper and free-fumigation wooden box;
    • In bulk or bundle
    • According to customers’ requirement
