Brand Name : | TISCO BAOSTEEL |
Model Number : | 304H / UNS S30409 |
Certification : | ISO |
Price : | 2000-2500 USD/Ton |
Payment Terms : | T/T, Western Union |
Supply Ability : | 20Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |
Products Specification
Product name | 304H Stainless steel plate |
Standard | GB,JIS,DIN,AISI,ASTM,AISI,ASME |
Thickness | 3.0 - 20.0mm |
Width | 1500mm, or as your requirements |
Length | 3000,6000mm, or as your requirements |
MOQ | 1MT |
Surface | Hot rolled NO.1 Surface |
Packing | standard export packing (inside:water proof paper,outside:steel covered with strips and pallets) |
Cargo ready date | within 25-35 days after confirming orders |
Delivery Time | About 5-7 days after receive the deposit. |

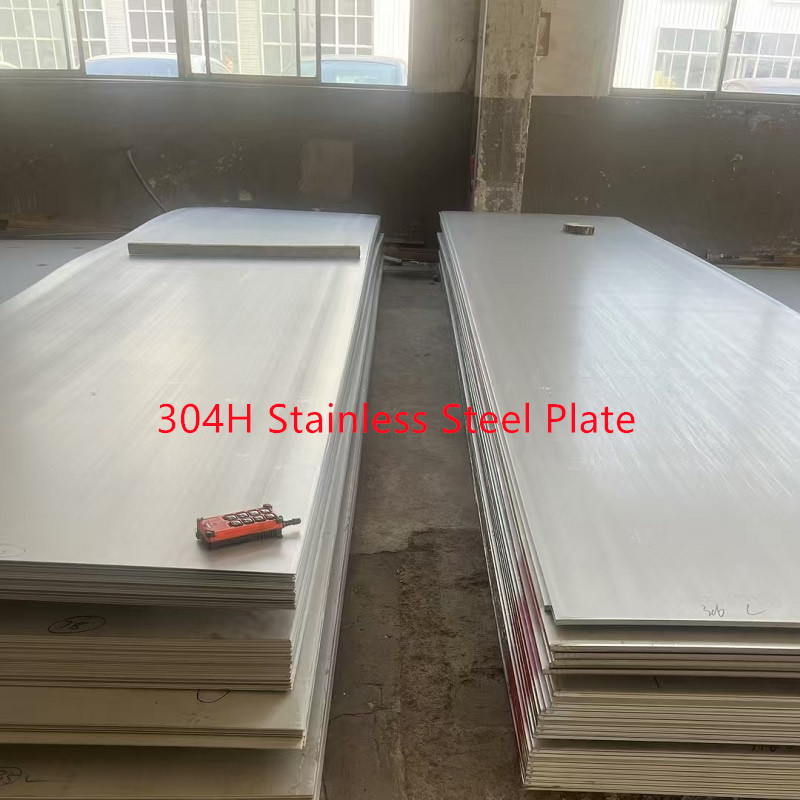

We produce and export ASTM A240 304H stainless steel plate, ASTM A240 TP304H Stainless Steel No.1 Finish Plate and we supply TP304H stainless steel stock list thickness 3mm to 20mm at Origin China. We are the large stainless material factory supplier in China.
Our ASTM A240 UNS S30409 Sheet Plates are of highest quality and extremely corrosion resistant. Co. is among the leading producer, provider and stockiest of products such as Stainless Steel, Aluminium Alloy, Copper Nickel Alloy, Carbon Steel, High Nickel Alloy, Alloy Steel and a few of the specialised products. Solution therapy or annealing could be accomplished by fast cooling after heating to °C. Steber Steelis a well-known worldwide exporter of 304 Stainless Steel Plate,Steber Steelis committed to provide each and every buyer with the very best standard of customer service. We deals in304 Stainless Steel Platein India & Overseas, offering a wide range of304 Stainless Steel Plate.
density of 304h|nssw yt-304h|304h plate suppliers|304h properties|304h oj-201|304l or 304h|304 or 304h|304h 1.4948|suppliers of 304h stainless steel|sensitization of 304h stainless steel|ss 304h material|304h 304|ldm-304h-xy|l-304 hd|304h 304l|lincoln lnt 304h|sa-479-304h|ldm-304h|linija 304h|304 hp l|304h material properties|super 304h material|y2-304h|304h p number|304h metallurgy|sa-240 304h properties|304h material composition|304h mechanical properties|304h means|n-304h|304h pwht|thermanit 304h|temperature 304h|t-304h|type 304h|tbi 304h|304h tensile strength|304h tig wire|tp 304h stainless steel|304h uns|304h plate uk|304h vs 347h|304h vs 316h|304h vs 316|304h stainless steel use|304h vs 304 ss|304h vs 310|304h stainless steel uk|304h vs 321h|s304h|s-304h-cctk|304h temperature range|304h stainless round bar
Its used to provide industrial boilers, stress valves, steam exhaust, pipelines, cooling towers, heat exchangers, flanges, and condensers. 304H stainless-steel plate can also be commonly used in the chemical, gas, and oil refining industry. This capacity to withstand excessive temperatures makes 304H chrome steel a helpful material in theses environments. Most commonly 304H stainless steel is found in petroleum refining vegetation. 304H stainless steel plate consists of between 0.04% and 0.10% carbon. 304H stainless-steel plate can also be comprised of at most 0.75% silicon, 2.00% manganese and 0.045% phosphorous.
ASTM A240 Stainless Steel 304H Chemical Composition
Type | Grade | ASTM A240 Chemical Composition | |||||||||
ASTM(A240M) | Others(JIS) | C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
Austenitic Steels | |||||||||||
304H | 0.04/0.10 | ≤0.75 | ≤2.00 | ≤0.045 | ≤0.030 | 8.0/10.5 | 18.0/20.0 | ― |
A240 Type 304L (low carbon), good resistance to nitric acid, and durable for medium temperature and concentration of sulfuric acid, widely used as liquid gas storage tanks, low temperature equipment (304N), appliances and other consumer products, kitchen equipment, hospital equipment, transportation Tools, wastewater treatment equipment.
Alloy 304 (S30400), 304L (S30403), and 304H (S30409) stainless steels are 18% chromium, 8% nickel austenitic alloys, which are the most common and commonly used alloys in the stainless steel family. Because these alloys have one or more of the following properties, they can be used in various applications.
Properties include:
STM A240 TP304H Stainless Steel Plate Physical Properties
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
304H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
A high-alloy steel A240 304h that can resist corrosion in the air or in chemically corrosive media. It has a beautiful surface and good corrosion resistance. It does not need to undergo surface treatment such as plating, but exerts its inherent surface properties. It is used in various steels.
In order to maintain the inherent corrosion resistance of stainless
steel, steel must contain more than 12% chromium
SS 304H Plate Equivalent grades
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
SS 304H | 1.4948 | S30409 | – | – | – | – | – |
304, 304L, and 304H alloys are the most prone to stress corrosion
cracking (SSC) among austenitic stainless steels because of their
relatively low nickel content.
The conditions that cause stress corrosion cracking are: (1) the
presence of halide ions (usually chloride), (2) residual tension,
and (3) the temperature exceeds 120°F (49°C).
Cold deformation during alloy forming, stenting into tube sheet,
welding operations, etc. can all cause stress.
Annealing and stress relief heat treatment after cold deformation
can reduce stress, thus reducing the possibility of halide stress
corrosion cracking.
In the environment that may cause intergranular corrosion, it is
best to choose low-carbon 304L alloy when working under
low-temperature annealing.
ASTM A240 Stainless Steel 304H Plate Mechanical Properties
Type | Mechanical Properties for Stainless Steel Plates, Stainless Steel Sheet | |||||||
ASTM(A240M) | Others(JIS) | Tensile Properties | Hardness | |||||
Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | HBW | HRBW | ||||
AusteniticSteels | ||||||||
304H | ≥205 | ≥515 | ≥40 | ≤201 | ≤92 |
![]() |
