Brand Name : | DELTA |
Model Number : | TP317L |
Certification : | ISO |
Price : | 5000-6000 USD/Ton |
Payment Terms : | T/T, Western Union, L/C |
Supply Ability : | 10 Ton per week |
Delivery Time : | 5 - 12 days based on the quantity |
ASTM A312 TP317L Stainless Steel Pipe Tube DN10 - DN300 SS Pipe UNS S31703
Products Specification
Product name | stainless steel pipe / tube |
Material | 201,202,301,302,304,304L,310S,316,316L,
317L,2205,2507,904L,254SMO,ect. |
Processing Service | Punching, Cutting |
Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
Technique | Cold Rolled Hot Rolled |
Application | high-temperature and electric industry |
Type | pipe / tube |
Tolerance | ±1% |
Width | 10-1500mm Customized |
Thickness | 0.4-30mm or customized |
OD | 6mm-630mm or customized |
The 317L is a lower carbon version of the 317 material and it is easy to weld and produces less carbide precipitation during welding. The SS UNS S31703 ERW Pipe is produced through electric resistant welding. The ASTM A312 TP 317L Square Pipe is intended for high temperature services and the DIN 1.4438 SS 317L schedule 40 pipe is one of the medium range scheduled pipe. The ASTM A312 TP 317 Rectangular Pipe is used in structurally strong applications. We manufacture the SS UNS S31700 Welded Pipe, seamless and ERW pipes as well. Please contact us to place your order.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
317L | min. | - | - | - | - | - | 18.0 | 3.00 | 11.0 | - |
max. | 0.03 | 2.0 | 0.75 | 0.040 | 0.03 | 20.0 | 4.00 | 15.0 | - |
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317L | 515 | 205 | 35 | 95 | 217 |
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
317L | S31703 | - | - | 1.4438 | - | - | - |
Standard Size of Our Stainless Steel Pipe

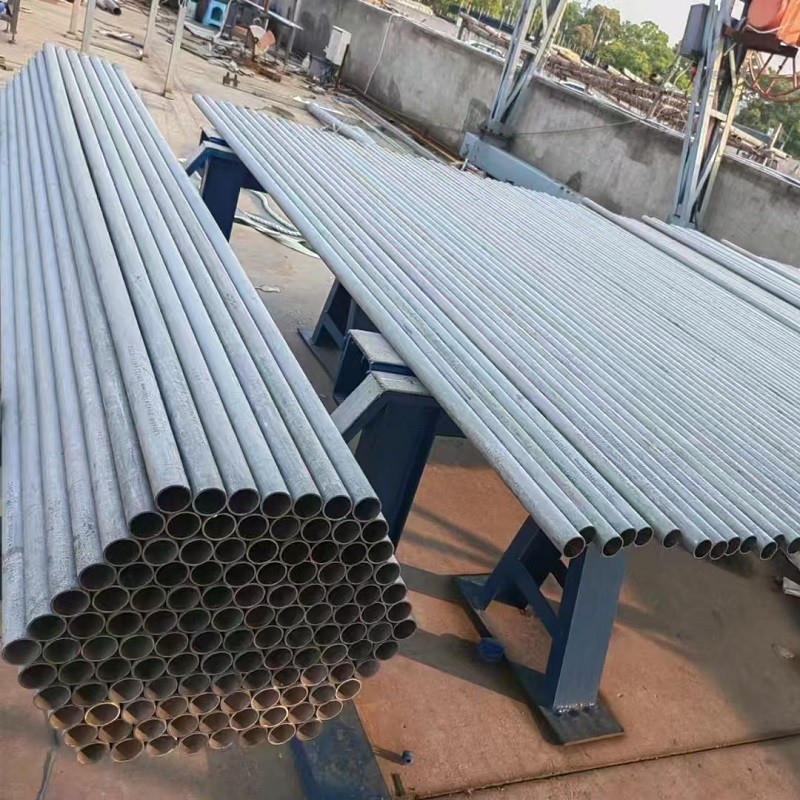

Products Picture
![]() |
